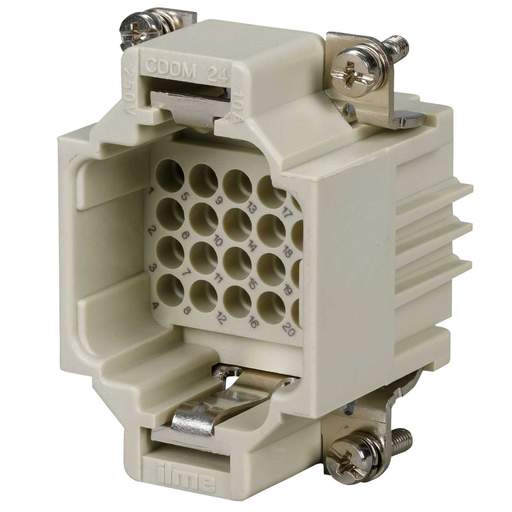

Ilme 10A 24 Pole + E Male Insert for Crimp Connections
Part Code: CDDM24
Stock Code: 0725-6542
Ilme 10A 24 Pole + E Male Insert for Crimp Connections
Part Code: CDDM24
Stock Code: 0725-6542
Features
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Rated IP20
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 10A
- Finish
- Silver Plated
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Reinforced Thermoplastic
- Number of Poles
- 24P E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Size
- 44.27
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 230V
- Weight
- 0.04580kg
