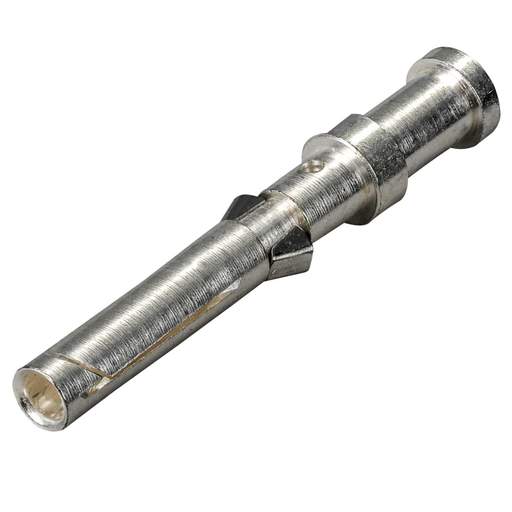

Ilme 10A 1.0mm Female Crimp Contacts Silver Plated
Part Code: CDFA1.0
Stock Code: 0725-6587
Ilme 10A 1.0mm Female Crimp Contacts Silver Plated
Part Code: CDFA1.0
Stock Code: 0725-6587
Features
- CD series female crimp pin can be used with 10A crimp pin inserts
- It is silver plated copper alloy and accommodates 18 gauge wire
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Compliance
- UL, CSA, CCC, GL, GOST
- Current Rating
- 10A
- Diameter
- 3.5mm
- Dimensions
- (L)21.6 mm x (Dia)3.5 mm
- Guarantee
- 1 Year
- Length
- 21.6mm
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CD Series Crimp Pin
- Size
- 1mm²
- Type
- Female
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 230V
- Weight
- 0.00080kg
