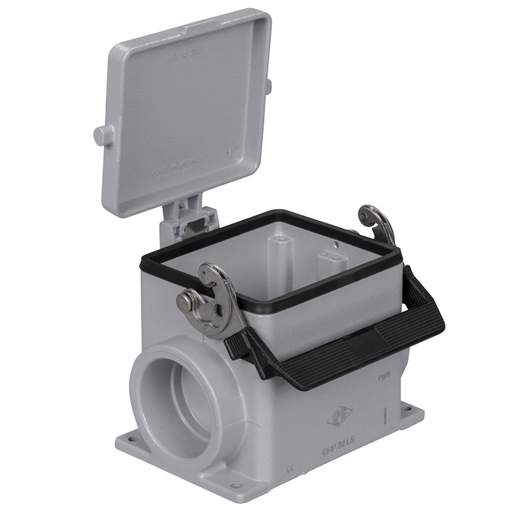

Ilme Pg36 Surface Mount Housing with Single Lever and Cover
Part Code: CHP32LS
Stock Code: 0725-7085
Ilme Pg36 Surface Mount Housing with Single Lever and Cover
Part Code: CHP32LS
Stock Code: 0725-7085
Features
- C-type surface mount standard housing is size 77.62
- Features a single lever with a cover and a PG36 cable entry
- Thermoplastic gasket
- The body is epoxy coated die-cast aluminium with a polyamide handle and stainless steel lever
- IP66 Rated when attached and locked down
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Guarantee
- 1 Year
- IP Rating
- IP65
- Lever
- Stainless Steel
- Material
- Die-Cast Aluminium Epoxy Coated
- Operating Temperature Range
- -40 - 125°C
- Packaging Types
- Each
- Product Range
- C Type Surface Mount Housing
- Size
- 77.62
- Standards
- EN 60529
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Weight
- 0.77500kg
