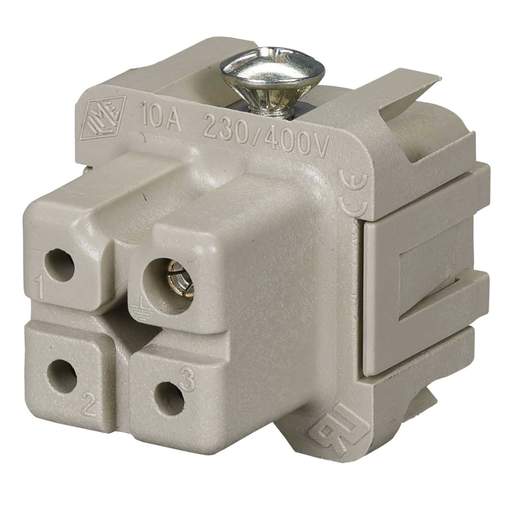

Ilme 10A 3 Pole + E Female Insert Screw Terminal Connection
Part Code: CKF03
Stock Code: 0725-7346
Ilme 10A 3 Pole + E Female Insert Screw Terminal Connection
Part Code: CKF03
Stock Code: 0725-7346
Features
- CK series standard female insert fits size 21.21 enclosures
- 3 pin + ground with a voltage rating of 600V and a rated current of 10A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on housing is self-extinguishing and is rated UL 94 V0
- IP20
- Operating temperature: -40°C to 100°C (-40°F to 212°)
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 10A
- Dimensions
- (L)21 mm x (W)21 mm
- Guarantee
- 1 Year
- IP Rating
- IP20
- Length
- 21mm
- Number of Poles
- 3P+E
- Operating Temperature Range
- -40-100°C
- Packaging Types
- Each
- Product Range
- CK Series Insert
- Size
- 21.21
- Standards
- EN 61984
- Type
- Female
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 230V
- Weight
- 0.01470kg
- Width
- 21mm
