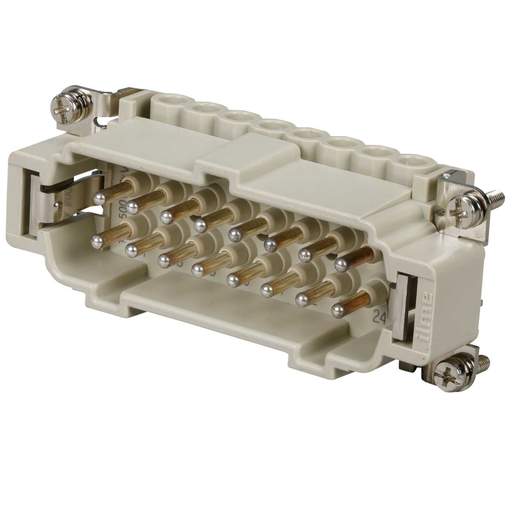

Ilme 16A 16 Pole + E Male Insert Screw Terminal Connector (17-32)
Part Code: CNEM16TN
Stock Code: 0725-7595
Ilme 16A 16 Pole + E Male Insert Screw Terminal Connector (17-32)
Part Code: CNEM16TN
Stock Code: 0725-7595
Features
- CNE series standard male insert fits size 77.62 enclosures and is 16 poles earth [numbered 17-32]
- Voltage rating of 500V
- Rated current of 16A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Glass Reinforced Thermoplastic Silver Plated Contacts
- Number of Poles
- 16P E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CNE Series Insert
- Size
- 77.62
- Standards
- EN 61984
- Terminal Numbers
- 17 - 32
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.09300kg
