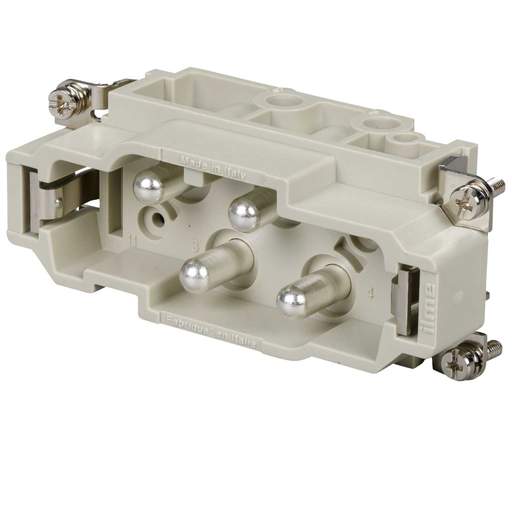

Ilme 80A 4 Pole + E Male Insert Screw Terminal Connection
Part Code: CXM4/0
Stock Code: 0725-8357
Ilme 80A 4 Pole + E Male Insert Screw Terminal Connection
Part Code: CXM4/0
Stock Code: 0725-8357
Features
- CX series standard male insert fits size 77.27
- The housing is thermoplastic with silver plated contacts
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 80A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Thermoplastic Resin
- Number of Poles
- 4P+E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- Inserts
- Size
- 77.27
- Standards
- EN 61984
- Terminal Numbers
- 1 - 4
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Weight
- 0.12730kg
