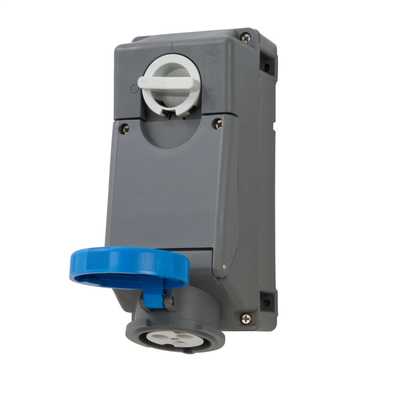

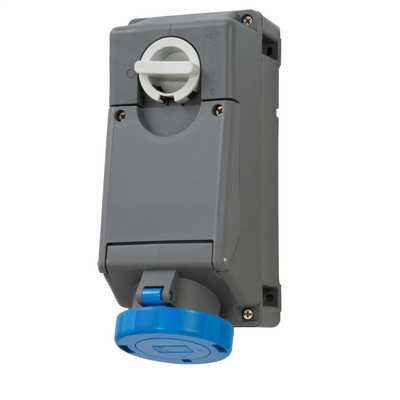

Ilme 32A 2P+E 230V Interlocked Switched Socket IP67

  • Part Code: TM3263KSP
  • Stock Code: 0726-1027
Ilme
Ilme_tm3263ksp_a_1aee9b41917444fc4c07ed17b3949f4a
Ilme_tm3263ksp_b_ca8ca2ad2b162d6956d6c6bacf311b60
Ilme_tm3263ksp_a_1aee9b41917444fc4c07ed17b3949f4a
Ilme_tm3263ksp_b_ca8ca2ad2b162d6956d6c6bacf311b60
  • Compliant with EN 60309-1 -2 and -4
  • Enclosures in insulating self-extinguishing thermoplastic
  • Socket-outlets with bayonet fastening cover
  • Factory installed internal wiring
  • Cable entry with drilling template
  • Knob lockable in positions O and I

Specification

Current Rating 32A
Depth 133mm
Dimensions (H)276 mm x (W)114 mm x (D)133 mm
Frequency 50/60 Hz
Guarantee 1 Year
Height 276mm
IP Rating IP67
Material Thermoplastic
Mounting Wall
Number of Poles 2P+E
Packaging Types Each
Product Range Interlocked Switched Socket
Standards EN 60309
Unspsc 39121406
Voltage Rating 230V
Weight 1.4kg
Width 114mm
