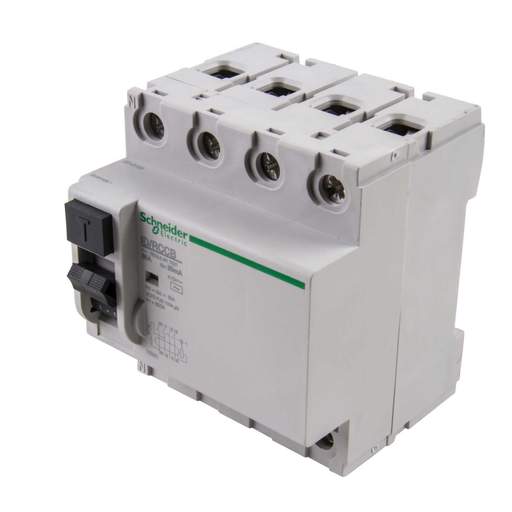

Schneider Acti9 80A 4 Pole 30mA Type AC RCD
Part Code: A9R11480
Stock Code: 0045-0796
Schneider Acti9 80A 4 Pole 30mA Type AC RCD
Part Code: A9R11480
Stock Code: 0045-0796
Features
- Neutral position left
- Network type AC
- Earth leakage sensitivity 30mA
- Earth leakage protection time delay is instantaneous
- Earth leakage protection class AC
- Rated breaking and making capacity Im 1500A
- Rated optional voltage 400V AC 50/60Hz
- Control type toggle
- 9mm pitches x 8
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 80A
- Depth
- 75mm
- Dimensions
- (H)81 mm x (W)72 mm x (D)75 mm
- Guarantee
- 18 Months
- Height
- 81mm
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Previously Known As
- 16261
- Product Range
- Acti9
- Rcd Type
- AC
- Short Circuit Rating
- 10kA
- Standards
- IEC 60947, IEC 61008
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V 400V
- Weight
- 0.40000kg
- Width
- 72mm
