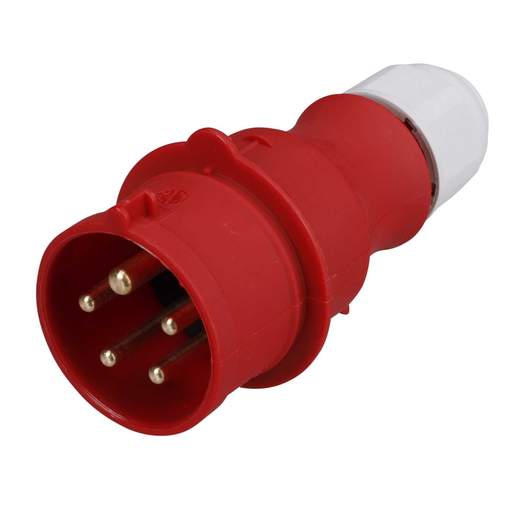

Ceenorm 16A 3P+N+E 415V Plug IP44
Part Code: 203-TLS
Stock Code: 0787-6678
Ceenorm 16A 3P+N+E 415V Plug IP44
Part Code: 203-TLS
Stock Code: 0787-6678
Features
- Screw terminals
- Multi-Grip cable gland with gasket and strain relief
- Brass nickel plated contacts with a maximum conductor size of 2.5mm²
- IP44 splashproof
- Manufactured from polyamide
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- CE
- Current Rating
- 16A
- Dimensions
- (L)146 mm x (H)75 mm x (W)66 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 75mm
- IP Rating
- IP44
- Length
- 146mm
- Material
- Polyamide / Brass
- Mounting
- Trailing
- Number of Poles
- 3P+N+E
- Packaging Types
- Each
- Standards
- IEC 309-2
- Terminal Type
- Screw
- Unspsc V18
- 39121402
- Unspsc V24
- 39121402
- Voltage Rating
- 415V
- Weight
- 0.16200kg
- Width
- 66mm
