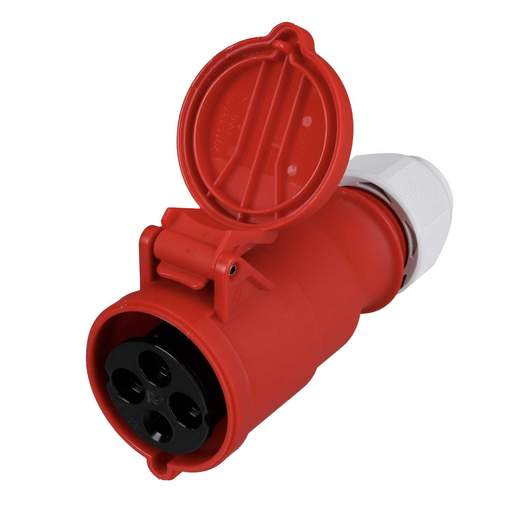

Ceenorm 32A 3P+E 415V Coupler IP44
Part Code: 31017-TLS
Stock Code: 0787-6720
Ceenorm 32A 3P+E 415V Coupler IP44
Part Code: 31017-TLS
Stock Code: 0787-6720
Features
- One piece body with screw terminals
- Multi-Grip cable gland with gasket and strain relief
- Brass nickel plated contacts with a maximum conductor size of 6mm²
- IP44 splashproof
- Manufactured from polyamide
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- CE
- Current Rating
- 32A
- Dimensions
- (L)181 mm x (H)67 mm x (W)67 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 67mm
- IP Rating
- IP44
- Length
- 181mm
- Material
- Polyamide / Brass
- Mounting
- Trailing
- Number of Poles
- 3P E
- Packaging Types
- Each
- Standards
- IEC 309-2
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.28900kg
- Width
- 67mm
