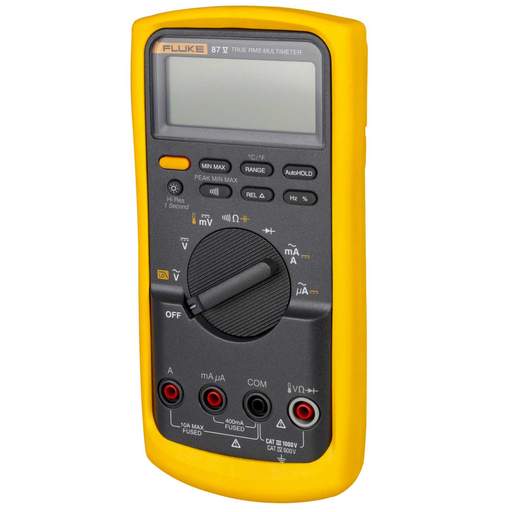

Fluke 87V True RMS Auto Ranging Digital Multimeter
Part Code: FLUKE 87V
Stock Code: 0788-3854
Fluke 87V True RMS Auto Ranging Digital Multimeter
Part Code: FLUKE 87V
Stock Code: 0788-3854
Features
- Exclusive functionality for performing accurate voltage / frequency measurements on adjustable speed motor drives, or other electrically-noisy equipment
- AC/DC voltage measurement ranges 600mV - 1000V auto ranging
- AC/DC current measurement ranges 600µA - 10A auto ranging
- Resistance measurement ranges 400Ω - 40MΩ auto ranging
- Frequency, capacitance, temperature continuity and diode test ranges
- Exceptional performance, even on noisy circuits
- Input alerts, backlit screen, auto / manual ranging, true RMS and much more
- Integral protective rubber boot with probe holders for easy storage
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 10A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Life
- 400h
- Battery Size
- PP3
- Battery Type
- Alkaline
- Capacitance Measurement
- 9999µF
- Compliance
- CE
- Data Hold
- Yes
- Dc Current Measurement
- 10A DC
- Dc Voltage Measurement
- 1000V DC
- Depth
- 52mm
- Dimensions
- (H)201 mm x (W)98 mm x (D)52 mm
- Display Count
- 6000
- Frequency Measurement
- 200 kHz
- Fused
- Yes
- Guarantee
- Lifetime
- Height
- 201mm
- Number of Batteries
- 1
- Packaging Types
- Each
- Product Range
- Fluke 80 Series
- Resistance Measurement
- 40 MΩ
- Safety Range
- CAT III 1000V, CAT IV 600V
- Standards
- EN 61010-1
- Supplied With
- TL75 Test Leads, AC175 Alligator Clips, Installed 9V Battery and 80BK Temperature Probe
- Temperature Range
- -2000 - 1090°C
- Type
- True RMS Multimeter
- Unspsc V18
- 41113630
- Unspsc V24
- 41113630
- Video Url
- https://youtu.be/MyyySNcjfzA
- Weight
- 1.00000kg
- Width
- 98mm
