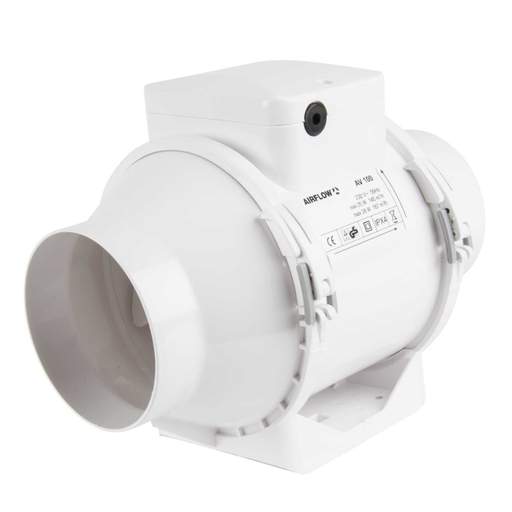

Airflow 100mm 4" Aventa Basic In-Duct Mixed Flow Fan
Part Code: 9041085
Stock Code: 0790-2232
Airflow 100mm 4" Aventa Basic In-Duct Mixed Flow Fan
Part Code: 9041085
Stock Code: 0790-2232
Features
- Flow rate up to 187m³ per hour
- Designed for ducted installations
- High pressure, low noise
- Compact and quiet in operation
- Two speed [normal and boost]
- Access to motor and impeller without dismantling ductwork
- Low watt motor from 21W
- IPX4 rating
- Complies with Building Regulations
- 1 year warranty as standard, register online to extend for an extra 2 years at [https://www.airflow.com/useful-links/warranty-registration]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Airflow
- Airflow Cubic Metresper Hour
- 145 / 187 m³/h
- Airflow Litresper Second
- 40 / 52 l/s
- Colour
- White
- Decibel Rating
- 27 / 36 dB[A] @ 3 m
- Diameter
- 190mm
- Dimensions
- (L)246 mm x (Dia)190 mm x (H)190 mm
- Ducting Size
- 100mm
- Guarantee
- 1 Year
- Height
- 190mm
- Hole Size
- 100mm
- IP Rating
- IPX4
- Length
- 246mm
- Material
- ABS
- Mounting
- In-Duct
- Operation Type
- Standard
- Packaging Types
- Each
- Power Rating
- 21W 33W
- Product Range
- Aventa
- Safety Cut Out
- Thermally protected motor
- Standards
- ISO 9001
- Suitable For
- Toillets, bathrooms, en-suites, utility rooms and kitchens
- Supplied With
- Mounting bracket
- Type
- In-Line Mixed Flow
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 1.65000kg
