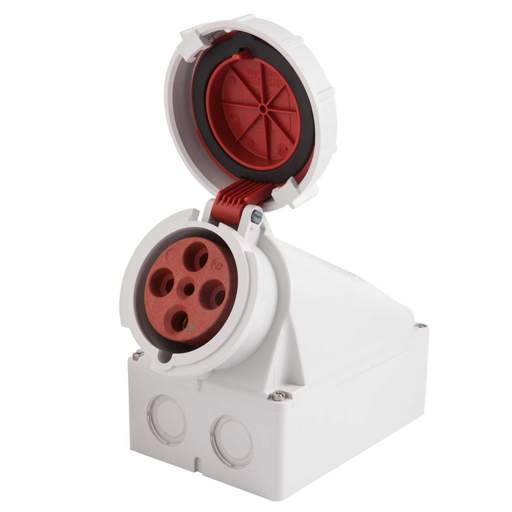

Mennekes 63A 3P+E 415V Wall Mounted Socket IP67
Part Code: 132PA
Stock Code: 0849-3757
Mennekes 63A 3P+E 415V Wall Mounted Socket IP67
Part Code: 132PA
Stock Code: 0849-3757
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Screw terminals
- With X-CONTACT
- Suitable for through wiring
- Internal fixing
- One cable entry at top, two blind cable entries [can be cut out] at the bottom
- Enclosure base can be turned 180°
- With 6 fixing points to accommodate special terminals
- Products with pilot contacts: part no. + index P
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Mennekes
- Colour
- White/Red
- Current Rating
- 63A
- Depth
- 175mm
- Dimensions
- (H)219 mm x (W)118 mm x (D)175 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 219mm
- IP Rating
- IP67
- Mounting
- Wall
- Number of Poles
- 3P+E
- Packaging Types
- Each
- Standards
- EN 60309
- Suitable For
- Through wiring
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.943kg
- Width
- 118mm
