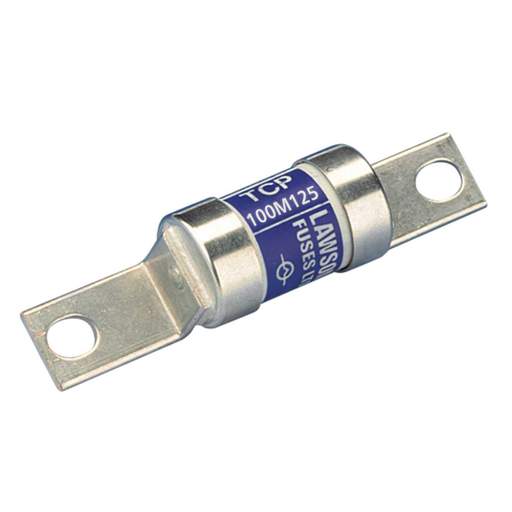

Lawson 100A TCP HRC Fuse 125A Motor Rated (Sold Individually)

Part Code: TCP100M125

Stock Code: 0013-2469

Lawson 100A TCP HRC Fuse 125A Motor Rated (Sold Individually)

Part Code: TCP100M125

Stock Code: 0013-2469

Features

  • BS industrial motor circuit protection fuse links with bolted connections to IEC 60269-2, BS 88-2
  • Continuous current rating: 100A
  • Motor starting rating: 125A
  • Breaking range and utilisation category: gM
  • BS 88 reference: A4

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Lawson Fuses
Colour
Blue/White
Compliance
CE
Current Rating
100A
Diameter
35mm
Dimensions
(L)110 mm x (Dia)35 mm
Fixing Centres
94mm
Fuse Reference
TCP
Guarantee
1 Year
Length
110mm
Packaging Types
Box
Rated Breaking Capacity
80kA AC
Rated Voltage
415V AC
Standards
IEC 60269-2, BS 88-2
Type
N&T
Unspsc V18
39121611
Unspsc V24
39121611
Weight
0.11600kg
