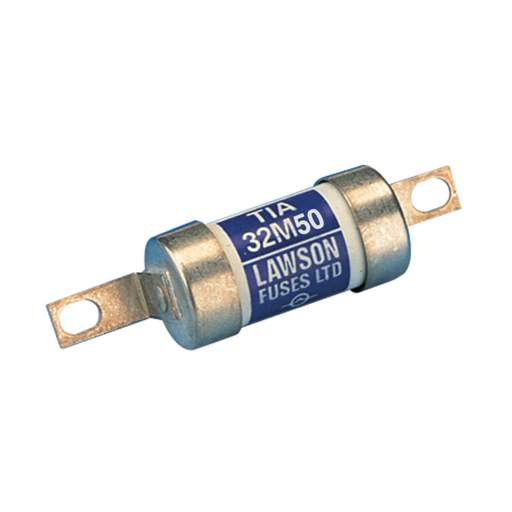

Lawson 32A TIA HRC Fuse 50A Motor Rated (Sold in 1's)

Part Code: TIA32M50

Stock Code: 0013-2550

Lawson 32A TIA HRC Fuse 50A Motor Rated (Sold in 1's)

Part Code: TIA32M50

Stock Code: 0013-2550

Delivery

54 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • BS industrial motor circuit protection fuse links with bolted connections to IEC 60269-2, BS 88-2
  • Continuous current rating: 32A
  • Motor starting rating: 50A
  • Breaking range and utilisation category: gM
  • BS88 reference: A2

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Lawson Fuses
Colour
Blue/White
Compliance
CE
Current Rating
32A
Diameter
22mm
Dimensions
(L)86 mm x (Dia)22 mm
Fixing Centres
73mm
Fuse Reference
TIA
Guarantee
1 Year
Length
86mm
Packaging Types
Box
Rated Breaking Capacity
80kA AC
Rated Voltage
415V AC
Standards
IEC 60269-2, BS 88-2
Type
N&T
Unspsc V18
39121611
Weight
0.054kg
