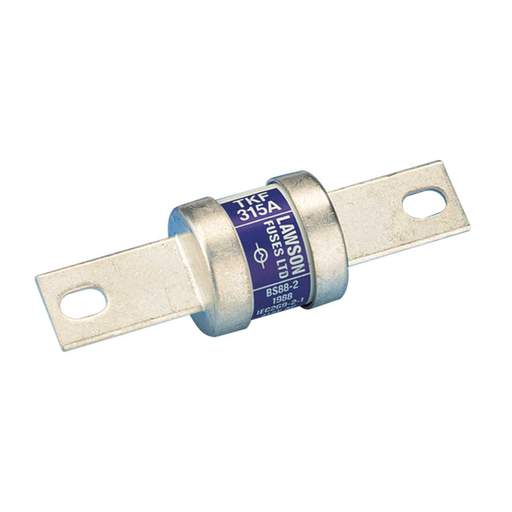

Lawson 315A TKF HRC Fuse (Sold in 1's)
Part Code: TKF315
Stock Code: 0013-2592
Lawson 315A TKF HRC Fuse (Sold in 1's)
Part Code: TKF315
Stock Code: 0013-2592
Features
- BS industrial fuse links with bolted connections to IEC 60269-2, BS 88-2
- Breaking range and utilisation category: gG
- BS 88 reference: B3
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lawson Fuses
- Colour
- Blue/White
- Compliance
- CE
- Current Rating
- 315A
- Diameter
- 41mm
- Dimensions
- (L)137 mm x (Dia)41 mm
- Fixing Centres
- 111mm
- Fuse Reference
- TKF
- Guarantee
- 1 Year
- Length
- 137mm
- Packaging Types
- Box
- Rated Breaking Capacity
- 80kA AC 40kA DC
- Rated Voltage
- 415V AC 250V DC
- Standards
- IEC 60269-2, BS 88-2
- Type
- N&T
- Unspsc V18
- 39121611
- Unspsc V24
- 39121611
- Weight
- 0.24000kg
