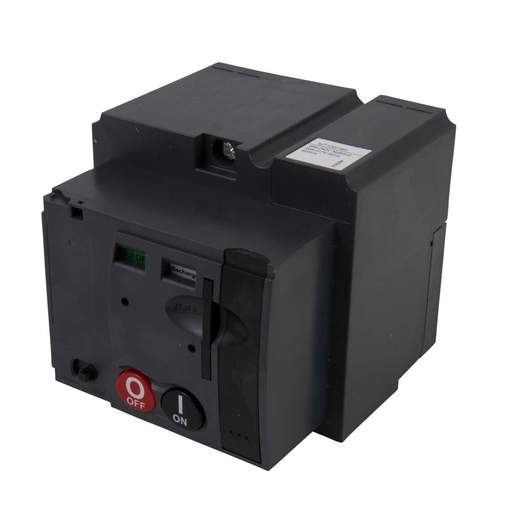

Schneider Merlin 220 to 240V 50/60Hz Motor Mechanism MT100/160 complete with SDE Adaptor Black
Part Code: LV429434
Stock Code: 0890-6203
Schneider Merlin 220 to 240V 50/60Hz Motor Mechanism MT100/160 complete with SDE Adaptor Black
Part Code: LV429434
Stock Code: 0890-6203
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Control circuit voltage 220-240V AC 50/60Hz, 208-277V AC 60Hz
- Standard control type
- Impulse and maintained control signal type
- Fixed mounting mode
- Response time ‹ 80ms during closing time and ‹ 600ms during opening time
- Maximum operating frequency is 4 per minute
- Power consumption ‹ 500VA during opening time and ‹ 500VA during closing time
- SDE adaptor provided
- 1 to 3 padlocks Ø5 to Ø8
- Padlocking in off position
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Merlin
- Current Rating
- 160A
- Guarantee
- 1 Year
- Packaging Types
- Each
- Product Range
- NSX100/250, NSX100/250 DC and PowerPact Multistandard
- Type
- Motor Mechanism
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltage Rating
- 230V
- Weight
- 1.39kg
