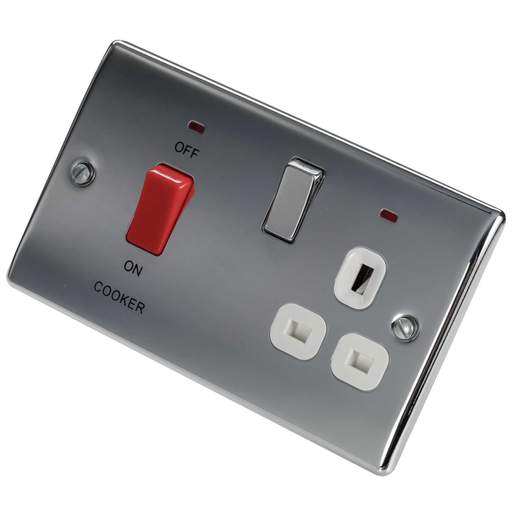

BG 45A DP Cooker Control Unit with Neon White Insert Polished Chrome
Part Code: NPC70W
Stock Code: 0900-7072
BG 45A DP Cooker Control Unit with Neon White Insert Polished Chrome
Part Code: NPC70W
Stock Code: 0900-7072
Features
- Fixed integrated plastic gasket to protect metal edges from moisture
- Colour matched fixing screws
- Colour coded terminals with backed out captive screws
- Twin earth terminals
- Flush neon indicator
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- BG
- Colour
- Polished Chrome
- Current Rating
- 45A
- Depth
- 7mm
- Dimensions
- (H)86 mm x (W)146.5 mm x (D)7 mm
- Finish
- Polished Chrome
- Fixing Centres
- 60.3mm
- Guarantee
- 25 Years
- Height
- 86mm
- Insert Colours
- White
- Mounting
- Wall
- Mounting Depth
- 47mm
- Neon
- Yes
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Nexus Metal
- Standards
- BS4177, BS EN 60669-1
- Switched Unswitched
- Switched
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.22400kg
- Width
- 146.5mm
- With Socket
- Yes
