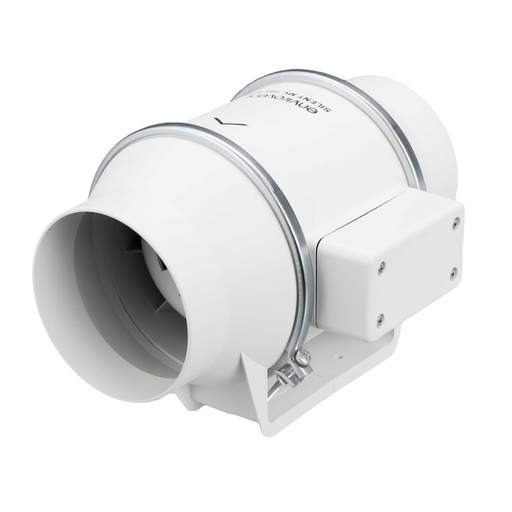

Envirovent Silent MV160 100mm 4" In-Duct Fan with Timer
Part Code: SILMV160/100T
Stock Code: 0915-9970
Envirovent Silent MV160 100mm 4" In-Duct Fan with Timer
Part Code: SILMV160/100T
Stock Code: 0915-9970
Features
- Sealed for life ball bearings
- Silent elastic blocks
- Fitted with a two speed motor
- Fitted with an adjustable run on timer
- Low noise level
- Complies with building regulations
- Easy installation and maintenance
- Timer models are commissioned at installation to operate at high speed
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Envirovent
- Airflow Cubic Metresper Hour
- 180 m³/h
- Airflow Litresper Second
- 50 l/s
- Colour
- White
- Decibel Rating
- 24 dB[A] @ 3 m
- Diameter
- 135.5mm
- Dimensions
- (L)232 mm x (Dia)135.5 mm x (H)151 mm
- Ducting Size
- 100mm
- Fan Speed
- 2400r/min
- Guarantee
- 5 Years
- Height
- 151mm
- IP Rating
- IP44
- Length
- 232mm
- Mounting
- In-Duct
- Number of Speeds
- 1
- Operation Type
- Timer
- Packaging Types
- Each
- Power Rating
- 29W
- Product Range
- Silent MV
- Timer Range
- 1 - 30
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 1.75000kg
