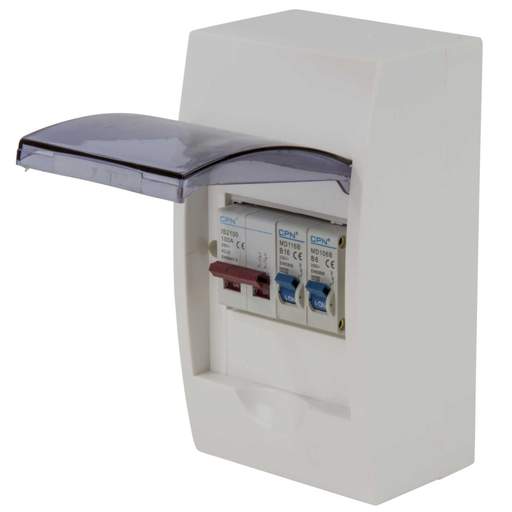

Cudis 4 Way 100A DP Isolator Incomer Insulated Consumer Unit with 2 x MCBs
Part Code: ECU04/10
Stock Code: 0920-4076
Cudis 4 Way 100A DP Isolator Incomer Insulated Consumer Unit with 2 x MCBs
Part Code: ECU04/10
Stock Code: 0920-4076
Features
- Supplied with 100A double pole isolator, 1 x 6A, and 1 x 16A Type B MCBs
- Manufactured from tough, flame retardant ABS
- IP50 rated - suitable for most indoor applications
- Lidded enclosure
- 20mm and 25mm gland entry knock-outs
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Current Rating
- 100A
- Depth
- 91mm
- Dimensions
- (H)200 mm x (W)111 mm x (D)91 mm
- Guarantee
- 1 Year
- Height
- 200mm
- IP Rating
- IP50
- Incoming Device
- 100A DP Isolator
- Mounting
- Surface
- Number of Modules
- 4
- Number of Outgoing Ways
- 2
- Packaging Types
- Each
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 1.20000kg
- Width
- 111mm
