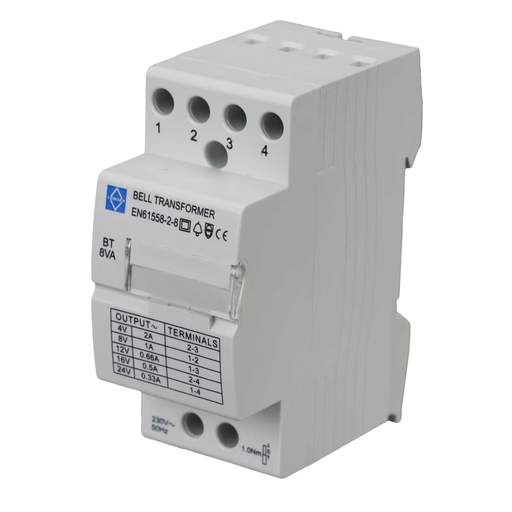

Lewden 230V Bell Transformer 8V/1A 2 Module
Part Code: BT
Stock Code: 0481-4461
Lewden 230V Bell Transformer 8V/1A 2 Module
Part Code: BT
Stock Code: 0481-4461
Features
- Rated voltage (primary) 230V/50Hz
- Rated voltage (secondary) 8V, 12V and 24V
- Rated output current 1A/8V, 0.67A/12V and 0.33A/24V
- Maximum cable capacity 4mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lewden
- Current Rating
- 1A
- Depth
- 60mm
- Dimensions
- (H)60 mm x (W)38 mm x (D)60 mm
- Guarantee
- 2 Years
- Height
- 60mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Accessories
- Type
- Bell Transformer
- Unspsc V18
- 39121002
- Unspsc V24
- 39121002
- Voltage Rating
- 230V
- Weight
- 0.24100kg
- Width
- 38mm
