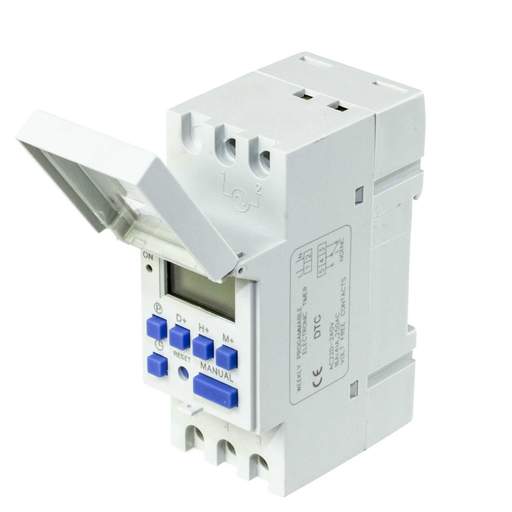

Lewden 1 Channel 7 Day Digital Time Switch
Part Code: DTC
Stock Code: 0445-3204
Lewden 1 Channel 7 Day Digital Time Switch
Part Code: DTC
Stock Code: 0445-3204
Features
- Voltage free contacts
- Capable of switching 16A
- 230V/50Hz din rail mounting
- Suitable for housing within Lewden consumer unit range
- Digital 7 day/1 channel/150h reserve
- 8 on/8 off memory locations
- Maximum cable 4mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lewden
- Battery Back Up
- Yes
- Cable Capacity
- 4mm²
- Contact Configuration
- 1 NO
- Current Rating
- 16A
- Depth
- 66mm
- Dimensions
- (H)82 mm x (W)36 mm x (D)66 mm
- Guarantee
- 2 Years
- Height
- 82mm
- Manual Override
- Yes
- Mounting
- DIN Rail
- Number of Channels
- 1
- Number of Modules
- 2
- Number of On offs
- 8
- Packaging Types
- Each
- Programmable
- Yes
- Standards
- EN 60529
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V AC
- Weight
- 0.06200kg
- Width
- 36mm
