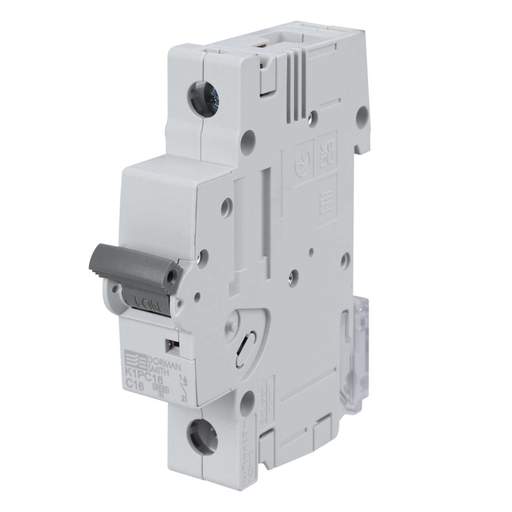

Dorman Smith 16A Single Pole 10kA C Curve MCB
Part Code: K1PC16
Stock Code: 0941-0617
Dorman Smith 16A Single Pole 10kA C Curve MCB
Part Code: K1PC16
Stock Code: 0941-0617
Features
- For use with Dorman Smith Loadlimiter 63 Type A and Type B Distribution boards
- Exceeds the requirements of EN60898
- Rated breaking capacity up to 10kA to EN60898
- Contact position indicator
- 35mm² cable capacity
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 16A
- Depth
- 69.5mm
- Dimensions
- (H)88 mm x (W)17.8 mm x (D)69.5 mm
- Guarantee
- 1 Year
- Height
- 88mm
- Incoming Terminal Capacity
- 35mm²
- Packaging Types
- Each
- Product Range
- Loadlimiter
- Short Circuit Rating
- 10kA
- Tripping Characteristics
- C Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.10000kg
- Width
- 17.8mm
