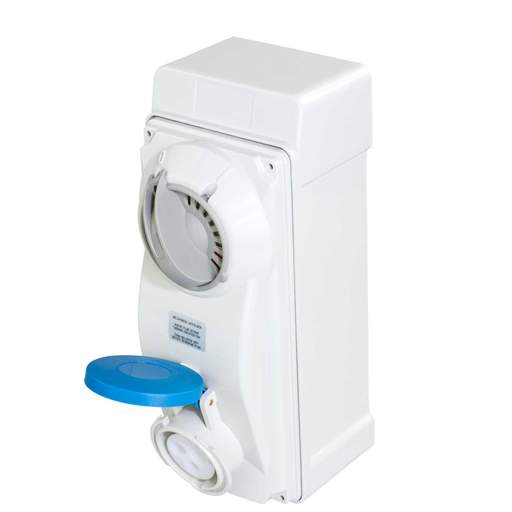

Lewden 16A 2P+E 230V Interlocked Switched Socket IP44

Part Code: PM16/3301NFPB

Stock Code: 0956-3926

Lewden 16A 2P+E 230V Interlocked Switched Socket IP44

Part Code: PM16/3301NFPB

Stock Code: 0956-3926

Delivery

5 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Interlocked socket-outlet for distribution boards
  • Padlockable handle in open or closed position, with max 3 mm Ø padlock
  • Best use for standard installations/applications
  • Thermoplastic body
  • Supplied with backbox

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Cable Entry
8-13mm
Current Rating
16A
Depth
130mm
Dimensions
(H)260 mm x (W)108 mm x (D)130 mm
Frequency
50/60 Hz
Guarantee
2 Years
Height
260mm
IP Rating
IP44
Isolator
Yes
Mounting
Wall
Number of Poles
2P+E
Packaging Types
Each
Product Range
Interlocked Sockets
Standards
CEI EN 60309, CEI EN 60529
Unspsc V18
39121406
Voltage Rating
230V
Weight
0.042kg
Width
108mm
