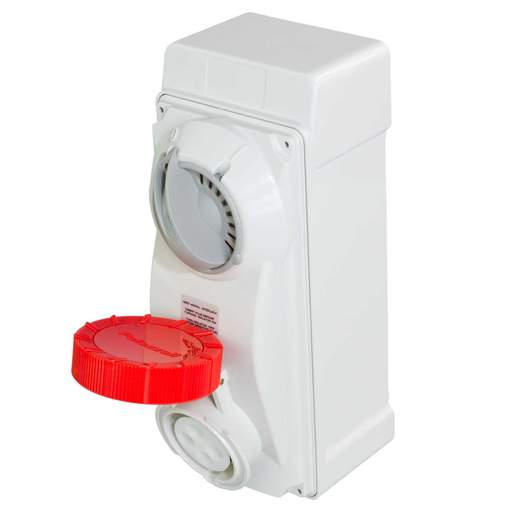

Lewden 16A 3P+E 415V Interlocked Switched Socket IP67
Part Code: PM16/3405NFPB
Stock Code: 0956-3941
Lewden 16A 3P+E 415V Interlocked Switched Socket IP67
Part Code: PM16/3405NFPB
Stock Code: 0956-3941
Features
- Interlocked socket-outlet for distribution boards
- Padlockable handle in open or closed position, with max 3 mm Ø padlock
- Best use for standard installations/applications
- Thermoplastic body
- Supplied with backbox
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 8.5-14mm
- Current Rating
- 16A
- Depth
- 148mm
- Dimensions
- (H)260 mm x (W)108 mm x (D)148 mm
- Frequency
- 50/60 Hz
- Guarantee
- 2 Years
- Height
- 260mm
- IP Rating
- IP67
- Isolator
- Yes
- Mounting
- Wall
- Number of Poles
- 3P E
- Packaging Types
- Each
- Product Range
- Interlocked Sockets
- Standards
- CEI EN 60309, CEI EN 60529
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 8.38800kg
- Width
- 108mm
