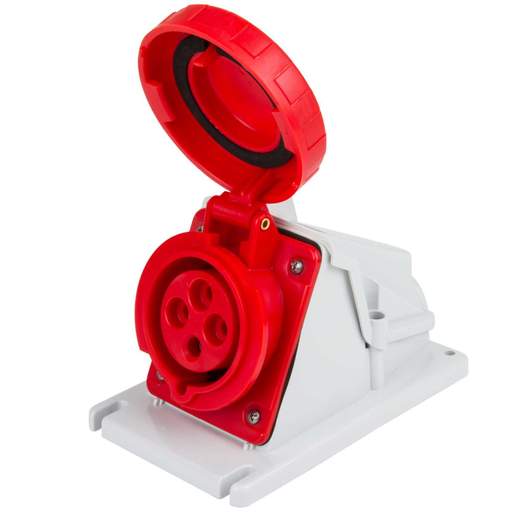

Gewiss 32A 3P+E 415V Wall Mounted Socket IP67

Part Code: GW62515

Stock Code: 0047-5954

Gewiss 32A 3P+E 415V Wall Mounted Socket IP67

Part Code: GW62515

Stock Code: 0047-5954

Delivery

11 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Self-extinguishing thermoplastic
  • Screw terminals
  • Operating temperature: -25 to 55°C
  • IEC 60309-1 and 2, EN 60529

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Gewiss
Colour
Red
Current Rating
32A
Depth
113mm
Dimensions
(L)170 mm x (W)105 mm x (D)113 mm
Frequency
50/60 Hz
Guarantee
1 Year
IP Rating
IP67
Length
170mm
Material
Self-Extinguishing Thermoplastic Polymer
Mounting
Wall
Number of Poles
3P+E
Packaging Types
Each
Product Range
IEC 309 HP
Standards
IEC 309
Supplied With
Cable Gland
Unspsc V18
39121406
Voltage Rating
415V
Weight
0.551kg
Width
105mm
