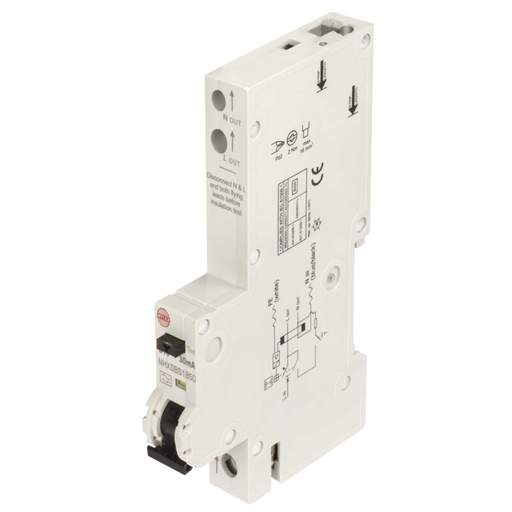

Wylex 50A Single Pole 1 Module 6kA Type B 30mA RCBO
Part Code: NHXSBS1B50
Stock Code: 0985-7026
Wylex 50A Single Pole 1 Module 6kA Type B 30mA RCBO
Part Code: NHXSBS1B50
Stock Code: 0985-7026
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wylex
- Current Rating
- 50A
- Depth
- 68mm
- Dimensions
- (H)125 mm x (W)18 mm x (D)68 mm
- Guarantee
- 1 Year
- Height
- 125mm
- Incoming Terminal Capacity
- 0.5mm² to 16mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Outgoing Terminal Capacity
- 0.5mm to 16mm
- Packaging Types
- Each
- Product Range
- NH Consumer Unit Outgoing Devices and Control Modules
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- IEC 61009-1
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Type
- Type B
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Weight
- 0.264kg
- Width
- 18mm
