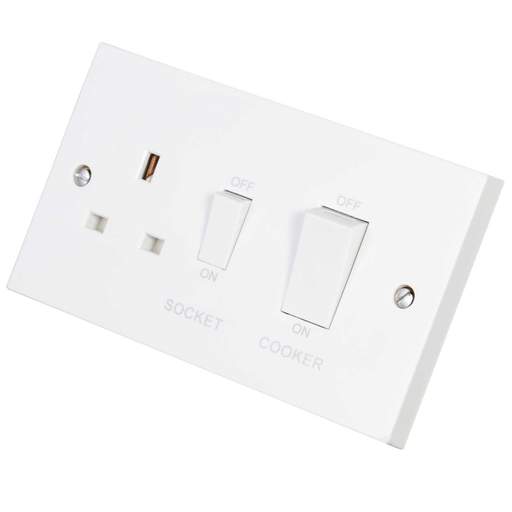

Scolmore Click Polar 45A DP Cooker Control Unit with White Rocker White
Part Code: PRW504
Stock Code: 0995-7706
Scolmore Click Polar 45A DP Cooker Control Unit with White Rocker White
Part Code: PRW504
Stock Code: 0995-7706
Features
- Socket outlets are available with single or double pole switches
- Twin earth terminals are fitted as standard
- White rockers
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- RoHS
- Current Rating
- 45A
- Depth
- 11mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)11 mm
- Fixing Centres
- 120.6mm
- Guarantee
- 25 Years
- Height
- 86mm
- Mounting
- Wall
- Mounting Depth
- 35mm
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Polar
- Standards
- BS EN 60669, BS 4177
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 1 x 16mm²
- Terminal Capacity Live Neutral
- 1 x 16mm²
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.25153kg
- Width
- 86mm
- With Socket
- Yes
