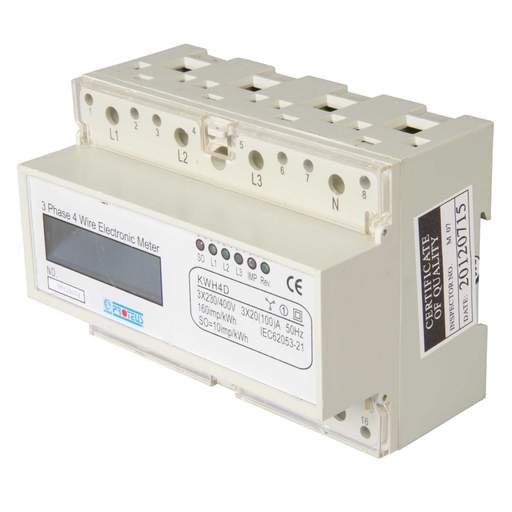

Proteus 100A TP+N Non Tariff Direct Connection Digital kWh Meter
Part Code: KWH4D
Stock Code: 0998-1316
Proteus 100A TP+N Non Tariff Direct Connection Digital kWh Meter
Part Code: KWH4D
Stock Code: 0998-1316
Delivery
Unknown delivery date
Features
- Three phase and Neutral non-tariff KWH meter
- Direct connection, maximum 100A
- Din rail mounting
- Digital readout
- 230V/400V AC
- Voltfree pulse output contact
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 100A
- Depth
- 68mm
- Dimensions
- (H)88 mm x (W)125 mm x (D)68 mm
- Height
- 88mm
- Mounting
- DIN Rail
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 400V
- Weight
- 0.6kg
- Width
- 125mm
