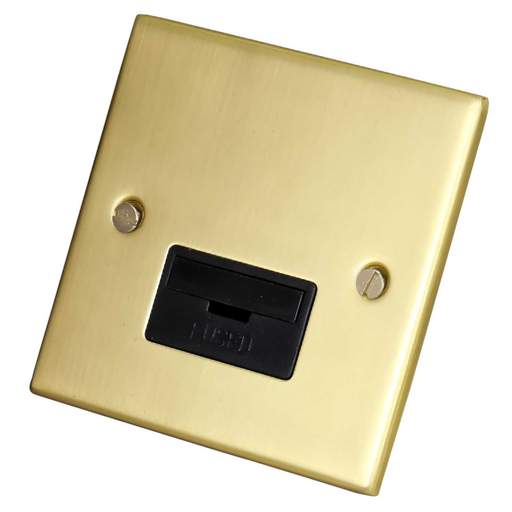

LGA Selectric 13A Unswitched Fused Spur Black Insert Satin Brass
Part Code: DSL827
Stock Code: 1028-1196
LGA Selectric 13A Unswitched Fused Spur Black Insert Satin Brass
Part Code: DSL827
Stock Code: 1028-1196
Features
- Compliant with BS 1363 Part 4
- CE Marked
- Terminals capable of accepting 3 x 2.5mm, 4 x 2.5mm (Earth) conductors
- Optional cable outlet located at bottom edge of faceplate as a knockout
- Cable clamp located on inside of plate capable of accepting 2.5mm flex
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Selectric
- Colour
- Satin Brass
- Current Rating
- 13A
- Dimensions
- (H)86 mm x (W)86 mm
- Finish
- Satin Brass
- Fixing Centres
- 60.3mm
- Fuse Fitted
- Yes
- Guarantee
- 1 Year
- Height
- 86mm
- Insert Colours
- Black
- Material
- Steel
- Mounting
- Wall
- Neon
- No
- Number of Gangs
- 1
- Packaging Types
- Each
- Product Range
- 5M
- Standards
- BS 1363
- Switched Unswitched
- Unswitched
- Unspsc V18
- 39121704
- Unspsc V24
- 39121704
- Voltage Rating
- 230V
- Weight
- 0.38000kg
- Width
- 86mm
