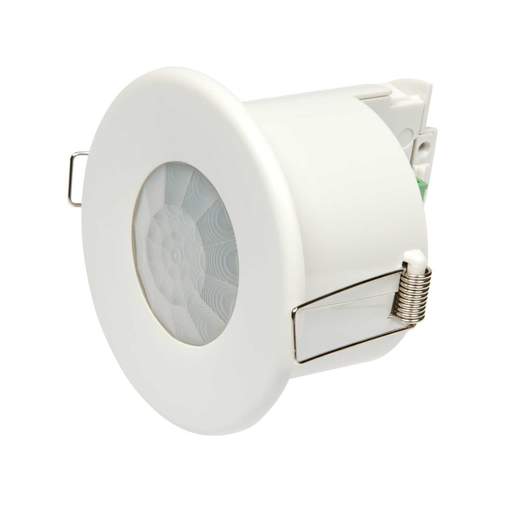

CP Electronics Legrand PIR Presence Absence Detector with Direct Dim DALI/DSI
Part Code: EBDSPIR-DD
Stock Code: 1038-9304
CP Electronics Legrand PIR Presence Absence Detector with Direct Dim DALI/DSI
Part Code: EBDSPIR-DD
Stock Code: 1038-9304
Features
- Dimming functionality
- Step-down illuminance
- Maintained Illuminance (daylight linking or daylight harvesting)
- Digital detectors can control up to 20 dimming ballasts
- Suitable for all lighting types
- Two channel flexibility
- Scene setting and recall
- Lamp burn-in
- Analogue detectors can control up to 10 dimming ballasts
- User handset available to control On/Off, lux levels and preset scenes
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cut Out
- 64mm
- Depth
- 65mm
- Diameter
- 76mm
- Dimensions
- (Dia)76 mm x (D)65 mm
- Guarantee
- 1 Year
- IP Rating
- IP40
- Maximum Switching Load
- Incandescent - 10A, Mains Halogen - 10A, LV Halogen - 10A, Fluorescent [Uncompensated] - 10A, LED - 10A, Energy Saving - 10A
- Mounting
- Ceiling / Recessed
- Packaging Types
- Each
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.16000kg
