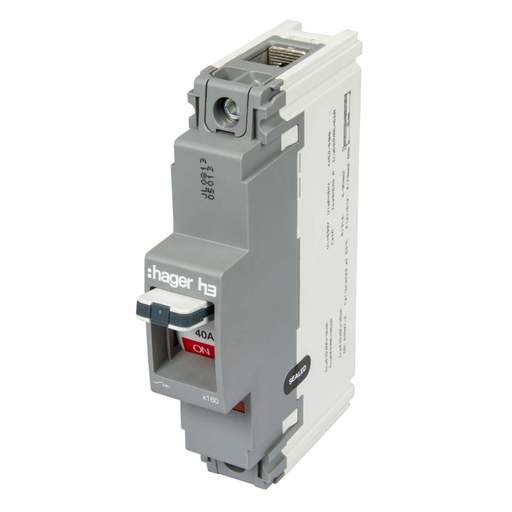

Hager 40A Single Pole 18kA MCCB
Part Code: HDA038Z
Stock Code: 1049-6803
Hager 40A Single Pole 18kA MCCB
Part Code: HDA038Z
Stock Code: 1049-6803
Features
- For use with Hager JN [250A] & Hager JF [400A] Panelboard's
- Mechanical test button lockable settings integrated padlocking handle ø 4mm
- Fixed thermal and fixed magnetic trips calibrated at 50°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 40A
- Depth
- 68mm
- Dimensions
- (H)130 mm x (W)25 mm x (D)68 mm
- Guarantee
- 2 Years
- Height
- 130mm
- Incoming Terminal Capacity
- 95mm² rigid cables, 70mm² flexible cables
- Mounting
- Panel
- Number of Poles
- Single Pole
- Outgoing Terminal Capacity
- 95mm² rigid cables, 70mm² flexible cables
- Packaging Types
- Each
- Product Range
- MCCBs and Switch Disconnectors x160
- Short Circuit Rating
- 18kA
- Standards
- BS EN 60947
- Type
- MCCB
- Unspsc V18
- 39121616
- Unspsc V24
- 39121616
- Weight
- 0.39500kg
- Width
- 25mm
