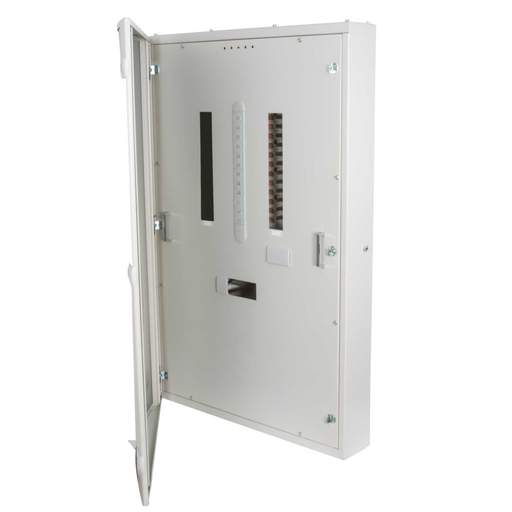

Hager 8 Way 250A TP+N MCCB Panelboard without Incomer
Part Code: JN208BG
Stock Code: 1049-7208
Hager 8 Way 250A TP+N MCCB Panelboard without Incomer
Part Code: JN208BG
Stock Code: 1049-7208
Features
- Flush coupling to trunking and a smooth entry for cables to meet the requirements of the regulations
- New design and positioning of cable entry end plate, earth and neutral bars aid simpler installation
- Metering kit fitting directly into the main board saves space and expense of buying an extension box
- 250A Incomers sold separately [JN223BS] and [JN224BS]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Busbar Rating
- 250A
- Current Rating
- 250A
- Depth
- 160mm
- Dimensions
- (H)1100 mm x (W)710 mm x (D)160 mm
- Door Type
- Glazed Door
- Guarantee
- 2 Years
- Height
- 1100mm
- IP Rating
- IP3X
- Lockable
- No
- Material
- 1.2mm CR4 Mild Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 8
- Packaging Types
- Each
- Product Range
- Invicta 3 Panelboard System
- Standards
- BS EN 61439
- Supplied With
- Comprises of enclosure, pan assembly, twin neutral and earth bar.
- Type
- Panelboard
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltage Rating
- 415V
- Weight
- 47.00000kg
- Width
- 710mm
