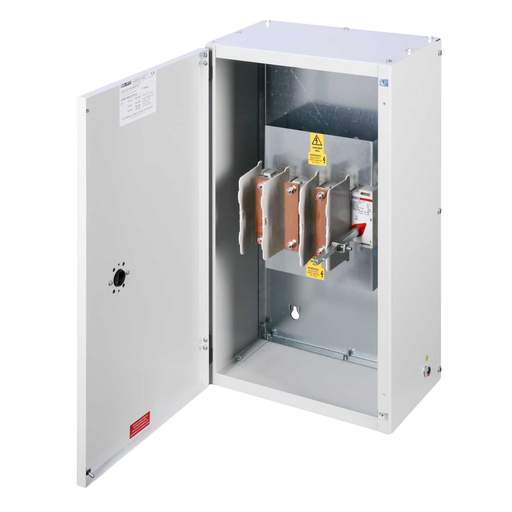

Proteus 250A TP+N Metal Isolator Switch Disconnector
Part Code: U250S
Stock Code: 0050-0047
Proteus 250A TP+N Metal Isolator Switch Disconnector
Part Code: U250S
Stock Code: 0050-0047
Delivery
1 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Heavy duty interlocking handle
- Padlockable in Off position for security
- Bolted neutral link
- Screened cable terminations
- Flush fitting door and removable for ease of installation
- Folded steel construction for extra rigidity
- Built-in cable box suitable for most applications
- Manufactured to BSEN60947-3
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top and Bottom Removable Gland Plates
- Current Rating
- 250A
- Depth
- 255mm
- Dimensions
- (H)700 mm x (W)400 mm x (D)255 mm
- Door Type
- Hinged Door
- Guarantee
- 1 Year
- Handle Type
- Pistol Grip
- Height
- 700mm
- IP Rating
- IP3X
- Incoming Terminal Capacity
- M10 Bolt 150mm²
- Lockable
- Yes
- Material
- 1.5 mm Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Product Range
- U Switchgear Range
- Standards
- BS EN 60947-3
- Terminal Capacity
- 150mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 400V
- Weight
- 18kg
- Width
- 400mm
