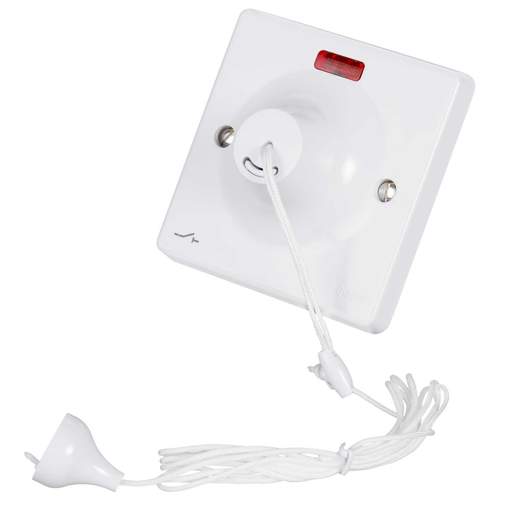

Hager Sollysta 50A DP Ceiling Pull Switch with Neon White
Part Code: WMCS50N
Stock Code: 1088-1418
Hager Sollysta 50A DP Ceiling Pull Switch with Neon White
Part Code: WMCS50N
Stock Code: 1088-1418
Features
- Rated conditional short circuit current (Inc) 1500A tested with Hager MTN110 MCB
- Suitable for use with showers up to 11.5kW
- Position of the contacts shown by flag indicator
- Supplied with M3.5 x 30mm fixing screws.
- Capacity of each terminal 1 x 16mm² conductors
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Rating
- 50A
- Depth
- 63mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)63 mm
- Fixing Centres
- 60.3mm
- Guarantee
- Lifetime
- Height
- 86mm
- Material
- Moulded
- Mounting
- Ceiling
- Neon
- Yes
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Sollysta
- Standards
- BS EN 60669
- Terminal Capacity Earth
- 1 x 16
- Unspsc V18
- 39122239
- Unspsc V24
- 39122239
- Voltage Rating
- 230V
- Weight
- 0.19700kg
- Width
- 86mm
