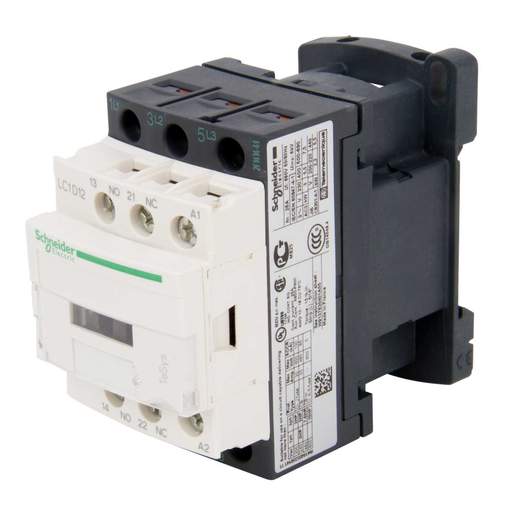

Schneider Telemecanique TeSys D 12A Contactor 3 Pole 3 NO Contacts 110V AC Coil

Part Code: LC1D12F7

Stock Code: 0050-4274

Schneider Telemecanique TeSys D 12A Contactor 3 Pole 3 NO Contacts 110V AC Coil

Part Code: LC1D12F7

Stock Code: 0050-4274

Delivery

3 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • Suitable for resistive and inductive loads
  • Operating temperature: -5 to 60°C
  • With safety cover
  • For DIN rail or screw panel / base mounting
  • EN 60947-5-1, EN 60947-4-1

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Schneider Telemecanique
Auxiliary Contact
1 NO + 1 NC
Coil Voltage
110V AC
Colour
Black/Grey
Contact Configuration
3 NO
Current Rating Ac1
25A
Current Rating Ac3
12A
Dimensions
(H)77 mm x (W)45 mm
Frequency
50/60 Hz
Full Load Current
12A
Guarantee
18 Months
Height
77mm
IP Rating
IP2X
Mounting
DIN Rail / Plate
Number of Poles
3 Pole
Packaging Types
Each
Product Range
TeSys D
Standards
EN 60947, IEC 60947, UL 508, CSA C22.2 No 14
Type
Contactor
Unspsc V18
39121529
Weight
0.356kg
Width
45mm
kW Rating
5.5kW
