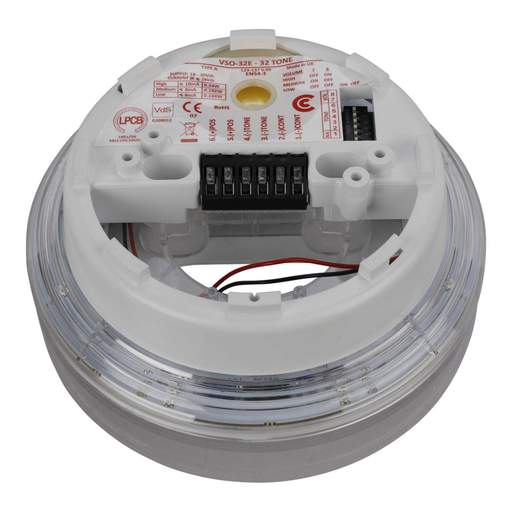

Cranford Controls 24V DC 32 Tone Platform Base Sounder Beacon White Red Lens
Part Code: FSAV6N
Stock Code: 1100-0641
Cranford Controls 24V DC 32 Tone Platform Base Sounder Beacon White Red Lens
Part Code: FSAV6N
Stock Code: 1100-0641
Features
- Combined platform sounder/beacon
- Provides 360° visibility via its high intensity LED array with a flash rate of once per second
- 32 tones
- Supplied with a clear lens but other colours are available, red, amber or blue
- Can accommodate the Firesafe range of detectors and most other leading detector brands
- Cover plate is also available, allowing product to be converted into a stand alone sounder beacon
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Consumption Range
- 9.3 - 11.5mA
- Decibel Rating
- 87 - 93 dB[A] @ 1 m
- Depth
- 34.5mm
- Diameter
- 116mm
- Dimensions
- (Dia)116 mm x (D)34.5 mm
- Guarantee
- 1 Year
- IP Rating
- IP21
- Lens Colour
- Red
- Material
- ABS Fire Retardant Plastic
- Number of Tones
- 32
- Operating Frequency
- 440 - 2900Hz
- Packaging Types
- Each
- Product Range
- Conventional Fire Alarm Sounder
- Size
- 116 mm x 34.5 mm
- Standards
- BS 5839
- Temperature Range
- -20 - +70°C
- Type
- Sounder Beacon
- Unspsc V18
- 46191505
- Unspsc V24
- 46191505
- Voltage Range
- 18 - 30 Vdc
- Volume Control
- Yes
- Weight
- 0.27000kg
