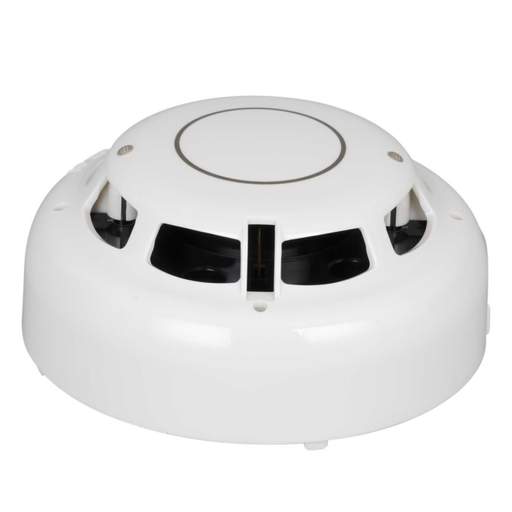

Hochiki ESP ATJ-EN Analogue Heat Detector Ivory
Part Code: FDHAH
Stock Code: 0051-0115
Hochiki ESP ATJ-EN Analogue Heat Detector Ivory
Part Code: FDHAH
Stock Code: 0051-0115
Features
- User selectable modes
- Incorporates fixed temperature and rate of rise heat elements
- Twin LEDs allow 360 degree viewing, green when polling, red in fire
- Pulsing/non-pulsing controlled from panel
- Electronically addressed
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Hochiki
- Colour
- Ivory
- Diameter
- 100mm
- Dimensions
- (Dia)100 mm x (H)45 mm
- Fixing Centres
- 26mm
- Guarantee
- 3 Years
- Height
- 45mm
- Humidity Range
- Up to 95% RH @ 40°C (Non Condensing)
- IP Rating
- IP64
- Material
- Polycarbonate
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -10°C
- Operating Voltage Range
- 17 - 41V
- Packaging Types
- Each
- Standards
- LPCB and VDS approved to Classes A, B and C
- Storage Temperature Range
- -30 - 60°C
- Unspsc V18
- 46191502
- Unspsc V24
- 46191502
- Weight
- 0.03200kg
