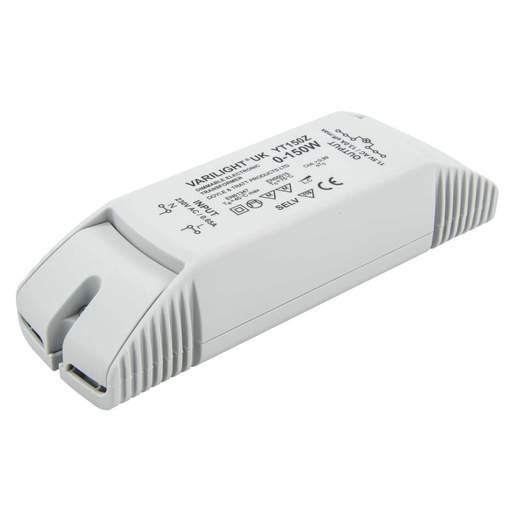

Fusion 150VA Low Voltage Electronic Dimmable Transformer
Part Code: YT150
Stock Code: 0052-1068
Fusion 150VA Low Voltage Electronic Dimmable Transformer
Part Code: YT150
Stock Code: 0052-1068
Features
- Soft start gently brings lights to full brightness when you switch on and extends lamp life
- Auto-resetting overload protection
- Auto-resetting over-temperature
- Short circuit protection
- No minimum rating
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Class Type
- Class 2
- Colour
- White
- Compliance
- CE, SELV
- Current Rating
- 13.0A
- Dimensions
- (L)167 mm x (H)52.5 mm x (W)38.5 mm
- Dimmable
- Yes
- Guarantee
- 1 Year
- Height
- 52.5mm
- IP Rating
- IP20
- Input Voltage
- 230V
- Length
- 167mm
- Material
- Plastic
- Number of Wire Connections
- 10
- Output Voltage
- 11.5V
- Packaging Types
- Each
- Power Range
- 0 - 150W
- Power Rating
- 150W
- Product Range
- Low Voltage Transformers
- Reset Type
- Auto Reset Thermal Cut Out
- Shape
- Rectangular
- Type
- Electronic
- Unspsc V18
- 39101904
- Unspsc V24
- 39101904
- Va Rating
- 150VA
- Voltage Rating
- 230V
- Weight
- 0.25000kg
- Width
- 38.5mm
