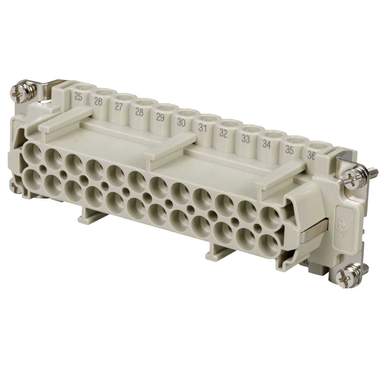

Ilme 16A 24 Pole + E Male Insert Screw Terminal Connectors (25-48)
Part Code: CNEM24TN
Stock Code: 1144-3204
Ilme 16A 24 Pole + E Male Insert Screw Terminal Connectors (25-48)
Part Code: CNEM24TN
Stock Code: 1144-3204
Features
- CNE series standard male insert fits size 77.27 enclosures and is 24 poles + earth [numbered 25-48]
- Voltage rating of 500V
- Rated current of 16A
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Guarantee
- 1 Year
- IP Rating
- IP20
- Material
- Glass Reinforced Thermoplastic Silver Plated Contacts
- Number of Poles
- 24P+E
- Operating Temperature Range
- -40-125°C
- Packaging Types
- Each
- Product Range
- CNE Series Insert
- Size
- 104.62
- Standards
- EN 61984
- Terminal Numbers
- 25 - 48
- Type
- Male
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.12500kg
