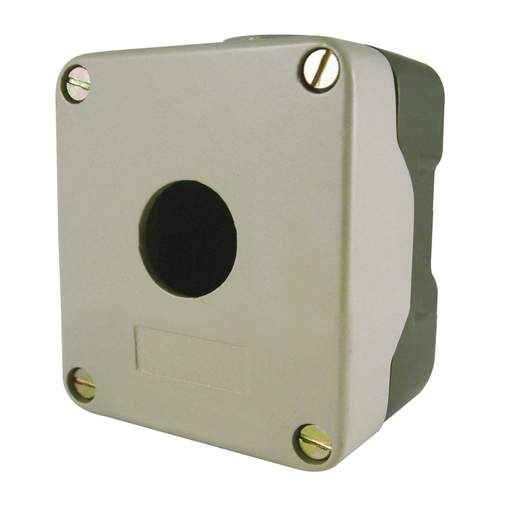

MCG 1 Way Die-Cast Empty Pushbutton Station Grey IP65
Part Code: PF1S+L
Stock Code: 0108-0988
MCG 1 Way Die-Cast Empty Pushbutton Station Grey IP65
Part Code: PF1S+L
Stock Code: 0108-0988
Features
- Compact dimensions
- Knockouts provided
- Surface mounting
- Accepts 22.5mm pushbuttons and indicators
- Not suitable for illuminated pushbuttons
- Complete with legend plate stickers including start, stop, on, off, directional arrows and many more
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockouts Provided
- Colour
- Grey
- Cut Out
- 22.5mm
- Depth
- 51mm
- Dimensions
- (H)74 mm x (W)68 mm x (D)51 mm
- Guarantee
- 1 Year
- Height
- 74mm
- IP Rating
- IP65
- Material
- Die-Cast Aluminium
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 1
- Packaging Types
- Each
- Standards
- IEC/EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
- Suitable For
- 22.5mm Pushbuttons
- Supplied With
- Legend Plate Stickers
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.29700kg
- Width
- 68mm
