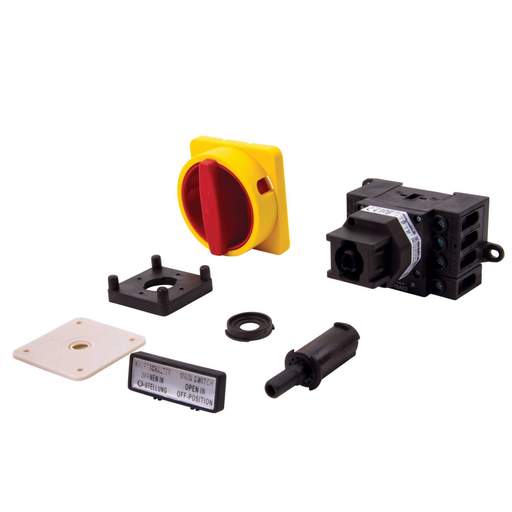

Salzer 32A 4P Rear Mounting Plastic Shaft Door Interlocked Isolator IP66
Part Code: 4P32ARMDI
Stock Code: 0013-3669
Salzer 32A 4P Rear Mounting Plastic Shaft Door Interlocked Isolator IP66
Part Code: 4P32ARMDI
Stock Code: 0013-3669
Features
- Door interlock with plastic shaft
- Padlockable for added security
- Four hole front mounting
- 90° switching angle
- Forced open contacts
- Terminal screws in open position
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Salzer
- Colour
- Black/Red/Yellow
- Current Rating
- 32A
- Depth
- 92mm
- Dimensions
- (H)70 mm x (W)67 mm x (D)92 mm
- Guarantee
- 1 Year
- Height
- 70mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- Metal/Plastic
- Mounting
- Rear Panel Mounting
- Number of Poles
- 4 Pole
- Packaging Types
- Box
- Standards
- IEC 60947
- Terminal Type
- Screw
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 690V
- Weight
- 0.17200kg
- Width
- 67mm
- kW Rating
- 11kW
