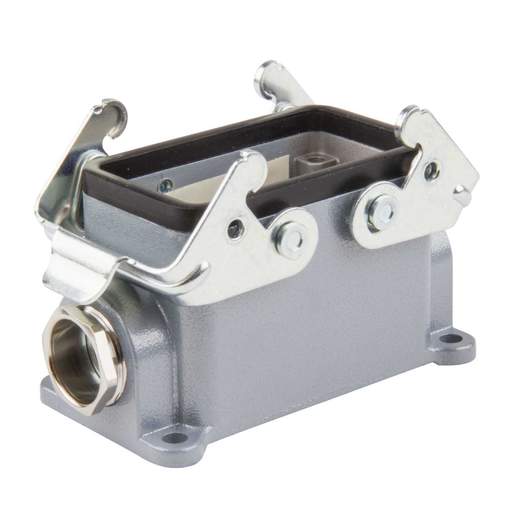

Wieland 16A 10P+E 500V Multipole Connector Closed Bottom Base
Part Code: 10PE16ASS
Stock Code: 0013-2754
Wieland 16A 10P+E 500V Multipole Connector Closed Bottom Base
Part Code: 10PE16ASS
Stock Code: 0013-2754
Features
- Closed bottom base with double locking lever
- UV resistant
- Operating temperature -40°C to 120°C
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Dimensions
- (L)94 mm x (H)54.5 mm x (W)52 mm
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Height
- 54.5mm
- IP Rating
- IP54
- Length
- 94mm
- Material
- Die-Cast Aluminium Alloy
- Operating Temperature Range
- -40 - 120°C
- Packaging Types
- Bag
- Size
- 10
- Standards
- EN 61984:2009, IEC 60664-1:2007, IEC 60529:1998-11 Amendment 1:1999-11
- Supplied With
- PG16 Cable Gland
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.25600kg
- Width
- 52mm
