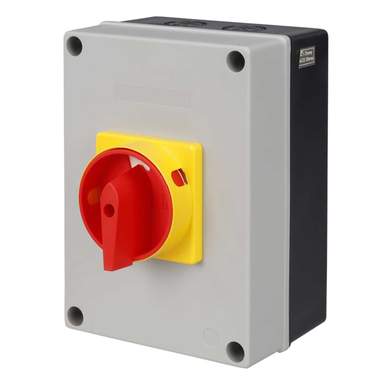

MCG 20A 4 Pole Rotary Isolator Switch IP65
Part Code: SMI20-4
Stock Code: 0576-1588
MCG 20A 4 Pole Rotary Isolator Switch IP65
Part Code: SMI20-4
Stock Code: 0576-1588
Delivery
165 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Insulated enclosure flame retardant material
- Low smoke and halogen free
- Easy access and switch removal
- Padlockable for added security
- Knockout cable entries
- Switch ratings at AC21
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockout Cable Entries
- Colour
- Red/Yellow/Grey
- Compliance
- UKCA, CE
- Current Rating
- 20A
- Depth
- 74mm
- Dimensions
- (H)125 mm x (W)100 mm x (D)74 mm
- Guarantee
- 1 Year
- Height
- 125mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- ABS
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- IEC/EN 60947-1, IEC/EN 60947-3
- Unspsc V18
- 39122217
- Voltage Rating
- 690V
- Weight
- 0.443kg
- Width
- 100mm
