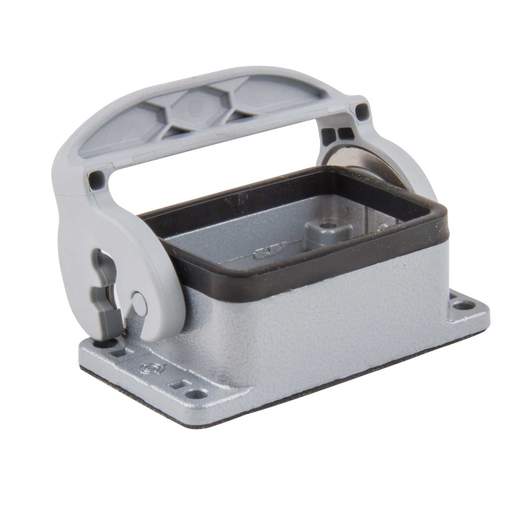

Wieland 16A 6P+E 500V Multipole Connector Open Bottom Base
Part Code: 6PE16APS
Stock Code: 0013-4080
Wieland 16A 6P+E 500V Multipole Connector Open Bottom Base
Part Code: 6PE16APS
Stock Code: 0013-4080
Features
- Open bottom base with single locking lever
- UV resistant
- Operating temperature -40°C to 120°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Dimensions
- (L)80 mm x (H)29 mm x (W)43.5 mm
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Height
- 29mm
- IP Rating
- IP54
- Length
- 80mm
- Material
- Die-Cast Aluminium Alloy
- Operating Temperature Range
- -40 - 120°C
- Packaging Types
- Bag
- Size
- 6
- Standards
- EN 61984:2009, IEC 60664-1:2007, IEC 60529:1998-11 Amendment 1:1999-11
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.07800kg
- Width
- 43.5mm
