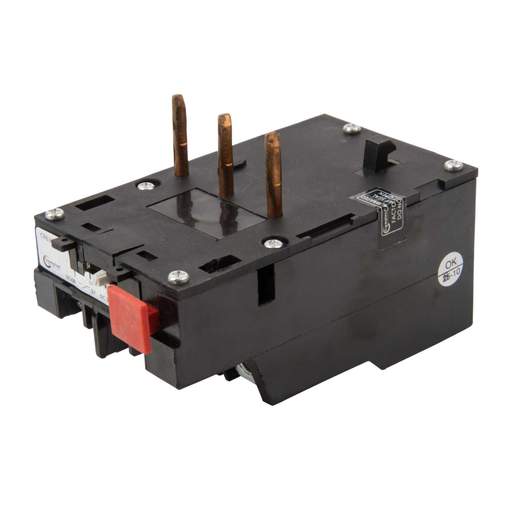

Crompton 48 to 57A Overload Unit
Part Code: CR63/57
Stock Code: 1033-3378
Crompton 48 to 57A Overload Unit
Part Code: CR63/57
Stock Code: 1033-3378
Features
- Manual reset
- Red stop plunger
- Adjustable overload range
- 1NO and 1NC auxiliary as standard
- Suitable for direct mounting onto contactor
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Depth
- 112mm
- Dimensions
- (H)74 mm x (W)63 mm x (D)112 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 74mm
- Material
- Metal/Plastic
- Mounting
- Contactor / Optional Mounting Bracket
- Overload Rating
- 48 - 57A
- Packaging Types
- Box
- Product Range
- CC Range
- Standards
- IEC 60947, EN 60947
- Suitable For
- CC40 to 65 Contactors
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.28500kg
- Width
- 63mm
