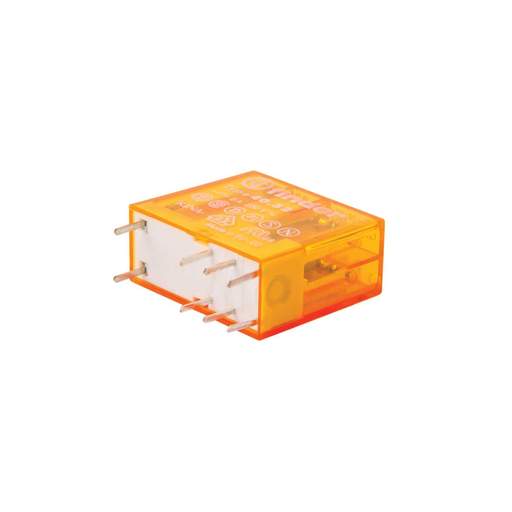

Finder 8 Pin 230V AC 8A 2 Pole Miniature Plug In Relay
Part Code: 4052-8230
Stock Code: 0035-0980
Finder 8 Pin 230V AC 8A 2 Pole Miniature Plug In Relay
Part Code: 4052-8230
Stock Code: 0035-0980
Features
- Power relay for direct PCB or socket mount
- 2CO 8A (5.0mm pin pitch)
- AgNi contact material
- Series 95 socket required for 35mm DIN rail (EN 60715) mounting (sold separately)
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Finder
- Changeover
- Yes
- Coil Voltage
- 230V AC
- Colour
- Orange
- Compliance
- CE, CCC, CSA, EAC, ENEC, IMQ, LR, RINA, UL, VDE
- Contact Configuration
- 2 CO
- Current Rating
- 8A
- Depth
- 25mm
- Dimensions
- (H)29 mm x (W)12.4 mm x (D)25 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 29mm
- Indication Lamp
- No
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -40°C
- Mounting
- PCB/Plug-In
- Number of Pins
- 8
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Series 40
- Standards
- EN 61810-1:2015, EN 60664-1:2007
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V
- Weight
- 0.01600kg
- Width
- 12.4mm
