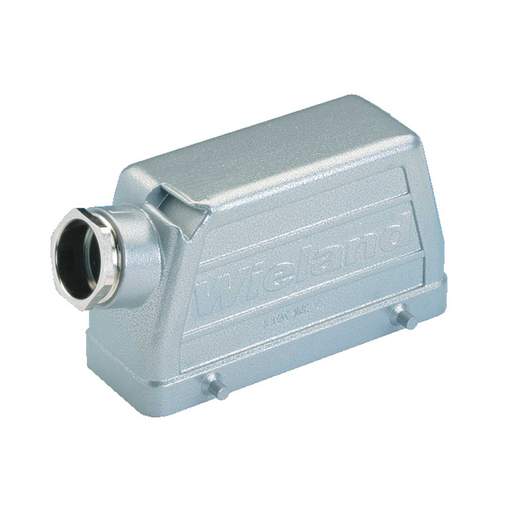

Wieland 16A 24P+E 500V Multipole Connector Hood
Part Code: 24PE16AP
Stock Code: 0013-3123
Wieland 16A 24P+E 500V Multipole Connector Hood
Part Code: 24PE16AP
Stock Code: 0013-3123
Features
- Hood with double locking lever
- Lateral cable entry
- UV resistant
- Operating temperature -40°C to 120°C
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Dimensions
- (L)120 mm x (H)70 mm x (W)56.6 mm
- Finish
- Powder Coated
- Guarantee
- 1 Year
- Height
- 70mm
- IP Rating
- IP54
- Length
- 120mm
- Material
- Die-Cast Aluminium Alloy
- Operating Temperature Range
- -40 - 120°C
- Packaging Types
- Bag
- Size
- 24
- Standards
- EN 61984:2009, IEC 60664-1:2007, IEC 60529:1998-11 Amendment 1:1999-11
- Supplied With
- PG21 Cable Gland
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 500V
- Weight
- 0.17300kg
- Width
- 56.6mm
