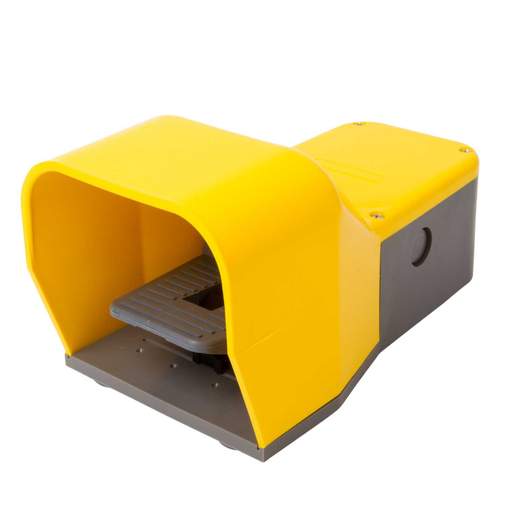

MCG Plastic Footswitch
Part Code: PS3140
Stock Code: 0013-7185
MCG Plastic Footswitch
Part Code: PS3140
Stock Code: 0013-7185
Features
- Suitable for use with foot switch operated machines such as shearing machines, spinning machines, machine tools, wrapping machines etc
- Free movement operation
- Base, cover and pedal made of shock resistant ABS material
- Double insulation
- Rear cable inlet with PG16 cable gland
- Pre-pressed knockouts on each side
- One (NO NC) snap-action contact
- Screw head connecting terminals with captive cable clamps
- Skidproof floor pads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Cable Gland/Knockout Entry
- Colour
- Yellow/Grey
- Connection Type
- Screw Connecting Terminals
- Contact Configuration
- 1 NO 1 NC
- Dimensions
- (L)280 mm x (H)138 mm x (W)140 mm
- Footguard
- Yes
- Guarantee
- 1 Year
- Height
- 138mm
- IP Rating
- IP65
- Length
- 280mm
- Material
- ABS
- Number of Pedals
- 1
- Operation Type
- Free Movement
- Packaging Types
- Each
- Standards
- IEC/EN 60947-5-1
- Unspsc V18
- 39122222
- Unspsc V24
- 39122222
- Voltage Rating
- 690V
- Weight
- 1.01900kg
- Width
- 140mm
