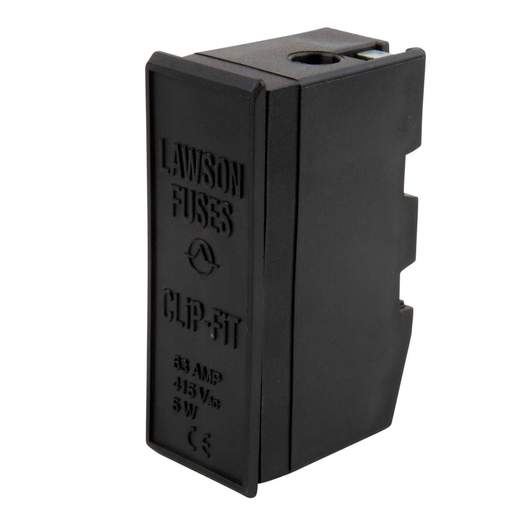

Lawson 63A Clipfit Fuse Holder Black
Part Code: LCF63 FCFC BK
Stock Code: 0035-1475
Lawson 63A Clipfit Fuse Holder Black
Part Code: LCF63 FCFC BK
Stock Code: 0035-1475
Features
- Clipfit fuse holders for compact dimension fuse links to IEC 60269-2, BS 88-2
- Fuse type (BS reference): MES (F2)
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Lawson Fuses
- Cable Entry
- Double Front Connected (FC/FC)
- Colour
- Black
- Compliance
- CE
- Current Rating
- 63A
- Depth
- 52mm
- Dimensions
- (H)90 mm x (W)32 mm x (D)52 mm
- Guarantee
- 1 Year
- Height
- 90mm
- Material
- Plastic
- Mounting
- DIN Rail
- Packaging Types
- Each
- Rated Breaking Capacity
- 80kA AC
- Rated Voltage
- 415V AC
- Standards
- IEC 60269-2, BS 88-2
- Type
- LCF
- Unspsc V18
- 39121624
- Unspsc V24
- 39121624
- Weight
- 0.12600kg
- Width
- 32mm
